# Remote Desktops with TurboVNC

To make full use of the graphical computing capabilities of the servers available to the SOAR team, TurboVNC with VirtualGL has been made available. This enables low latency 3D accelerated virtual remote desktop access on Linux host servers even across high latency links by performing JPEG realtime JPEG compression of a virtualized hardware accelerated display. This can then be viewed and interacted with using the lightweight TurboVNC client.

Currently, only the Dev Server (autodrive-dev) is available to use with hardware accelerated rendering. On the Dev Server, the Nvidia GTX 1080 Ti is currently assigned to perform all hardware acceleration tasks, leaving the TITAN Xp completely available to perform deep learning tasks.

# Client Installation

TurboVNC clients are available for Linux, Mac, and Windows operating systems and can be downloaded from: https://sourceforge.net/projects/turbovnc/

# Usage Instructions

To connect to the remote desktop, VPN access should first be configured and established. Next, the VNC server can be started via SSH:

ssh <netid>@autodrive-dev.egr.msu.edu '/opt/TurboVNC/bin/vncserver -fg'

You will be prompted to enter your autodrive password (which must be initially set using the NAS at autodrive-nas.egr.msu.edu using a one-time-password generated by a system administrator).

Be sure to include the -fg flag to run in the foreground to ensure the server isn't killed when the SSH process completes (the default behavior of the vncserver command it to return and run in the bacground).

Once successfully authenticating, the server should respond with something similar to:

Desktop 'TurboVNC: autodrive-dev:1 (<netid>)' started on display autodrive-dev:1

Starting applications specified in /home/<netid>/.vnc/xstartup.turbovnc
(Enabling VirtualGL)
Log file is /home/<netid>/.vnc/autodrive-dev:1.log

Notice the line Desktop 'TurboVNC: autodrive-dev:1 (<netid>)' started on display autodrive-dev:1; this tells you which display number the virutal desktop is started on. In this case, the virtual display number is 1.

The session is now ready to be connected to with the TurboVNC client. Open the TurboVNC client either through your local machine's applications menu, or on your local machine's terminal by entering into a terminal (Linux/macOS only):

/opt/TurboVNC/bin/vncviewer

Once the client opens, a window will appear. Enter the fully qualified domain name of the Dev Server (autodrive-dev.egr.msu.edu) followed by a colon and the display number as shown in the following picture.

Screen_Shot_2021-01-07_at_9.07.31_PM
Screen_Shot_2021-01-07_at_9.07.31_PM

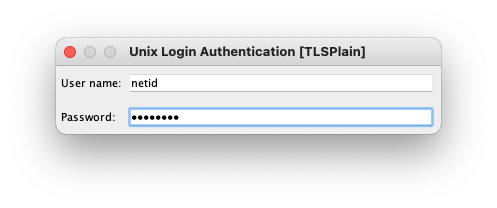

Then click "connect". If successful, you will be presented with an authentication window similar to the one below:

Screen_Shot_2021-01-07_at_9.22.26_PM
Screen_Shot_2021-01-07_at_9.22.26_PM

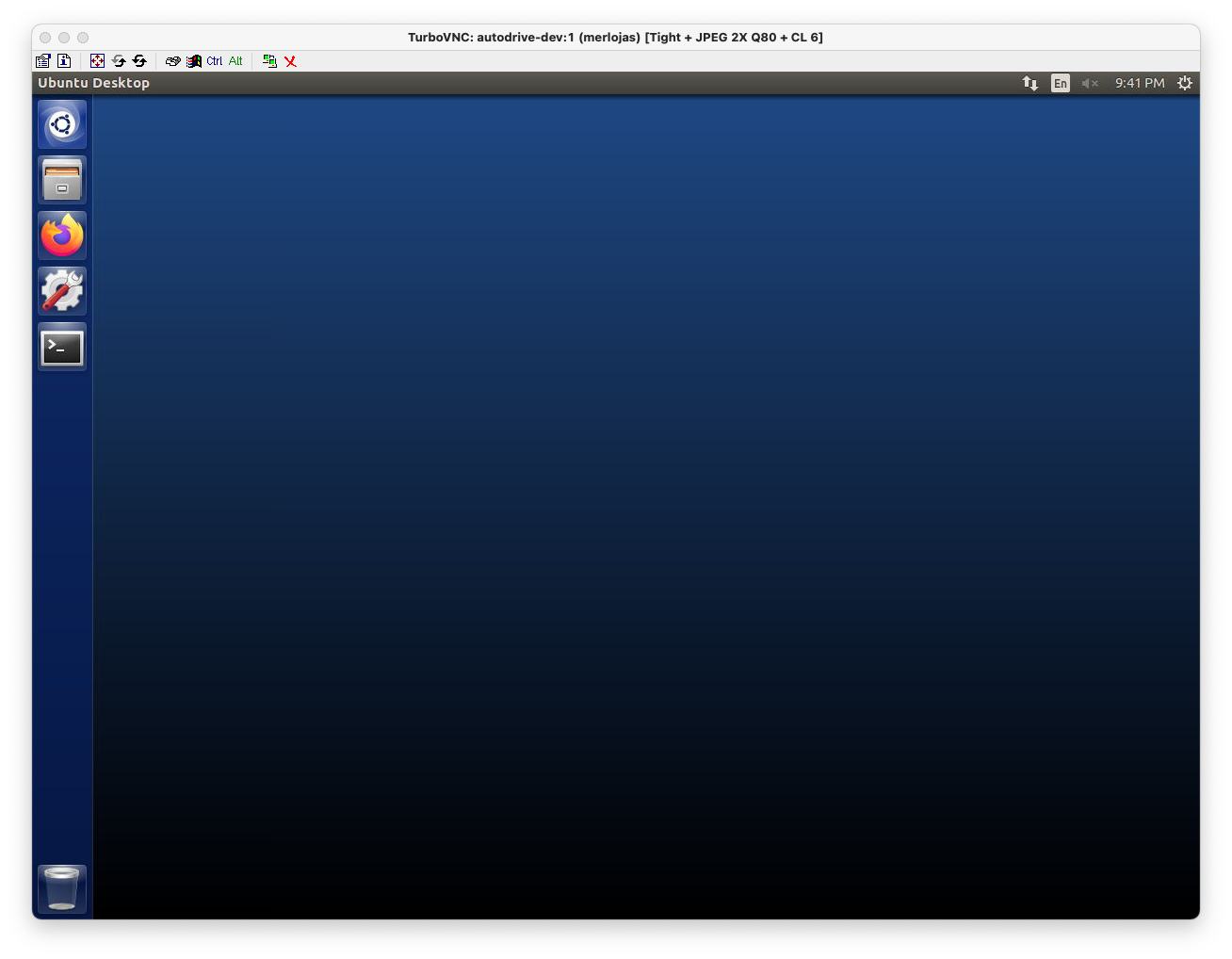

You must authenticate using your autodrive username and password to access the session. Press 'enter' to send credentials. If the correct credentials are entered, you should be presented with a desktop environment similar to the one below:

Screen_Shot_2021-01-07_at_9.41.46_PM
Screen_Shot_2021-01-07_at_9.41.46_PM

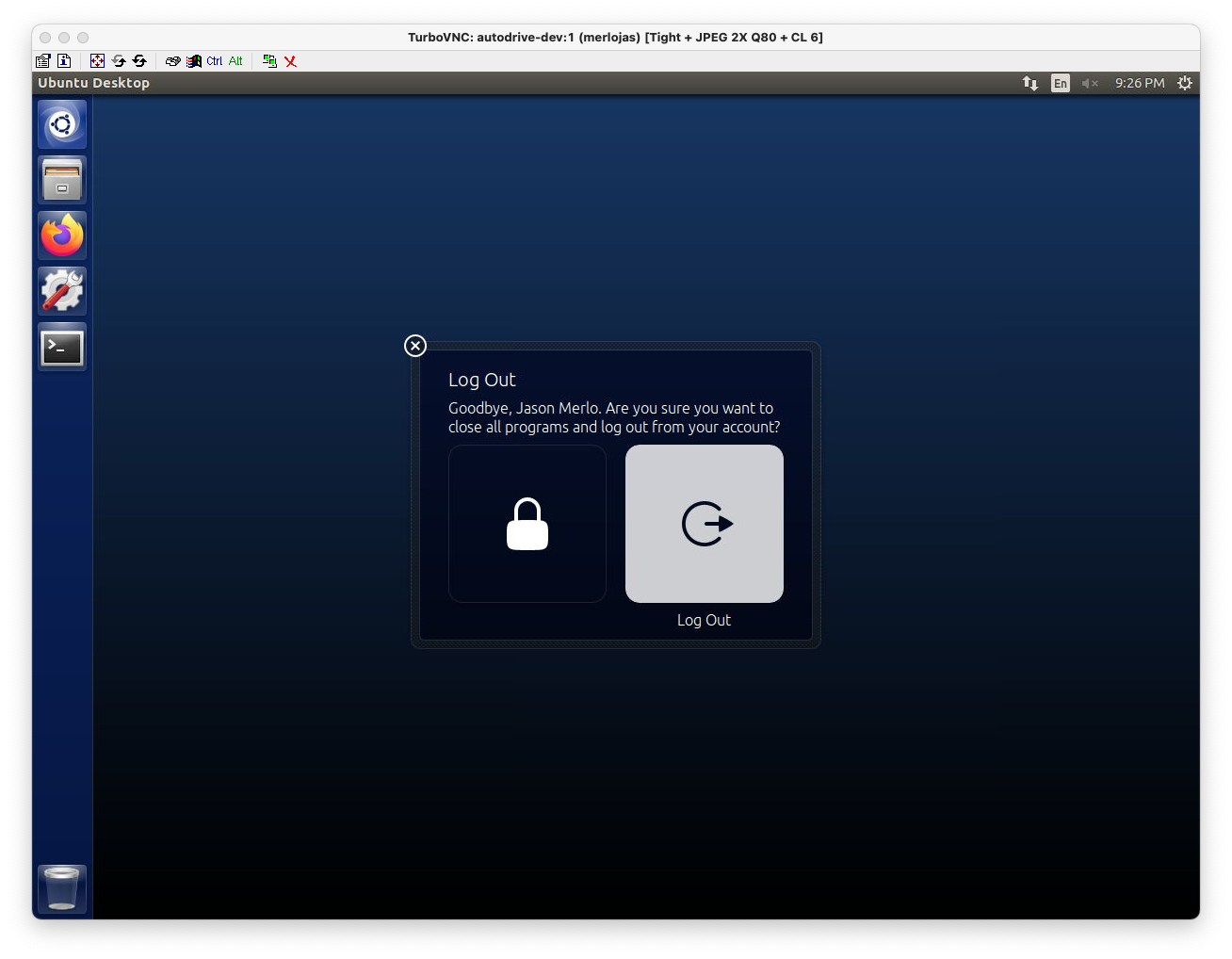

Finally, please remember to LOG OFF when you have completed your session, otherwise your session will continue indefinitely, consuming resources on the server.

Screen_Shot_2021-01-07_at_9.26.46_PM
Screen_Shot_2021-01-07_at_9.26.46_PM

# Tuning Performance

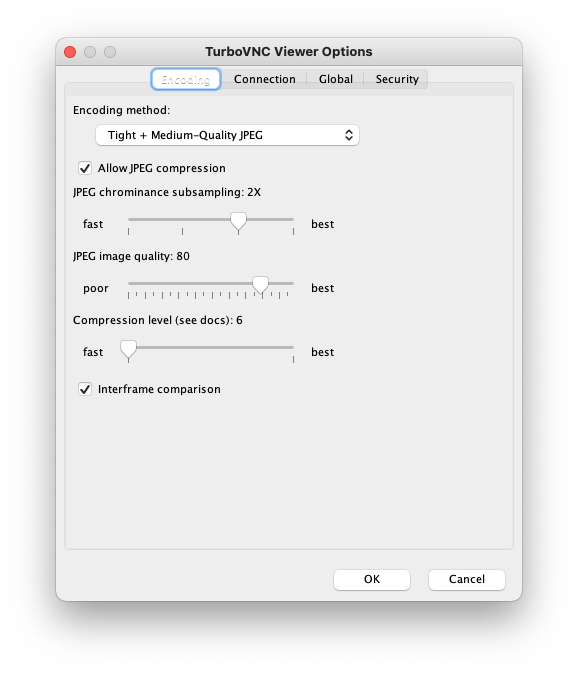

To adjust performance settings, the "connection options..." menu may be accessed from the menu bar and will display a menu similar to the one below:

Screen_Shot_2021-01-07_at_9.31.45_PM
Screen_Shot_2021-01-07_at_9.31.45_PM

Typically "Tight + Medium-Quality JPEG" is a good balance of performance and picture quality and provides usable latency when viewing interactive 3D content while on most high speed internet connections (>12 Mbps, <100ms ping time). Higher latency connections will inevitably incur a performance penalty in the ability to interact in realtime.

In general, resizing the window to be smaller will also help increase performance, especially if a larger/high-res display is used on the local machine.
